1.Origin: China
2.Certificate: ISO 9001
3.Usage:It is widely used in laboratories, schools, institutes, hospitals and many other places.

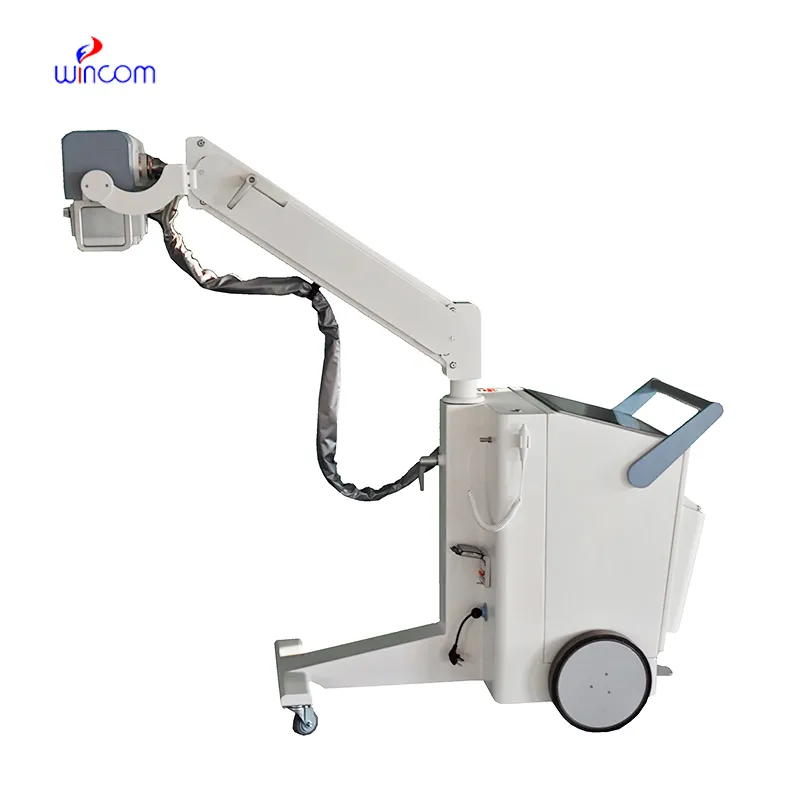

Mobile Digital Radiography X-ray System
Art No.	XRY-3200M
Output power	32KW
Frequency	≧200KHZ
Current	10～400mA
Voltage	40～125KV
mAs	0.1～320mAs
Exposure time	1ms~10000ms
Intelligent protection system	It has self-protection system. It will give an alarm and check fault code.
Anode type	Rotating Anode
Focal Spot value	1.0mm /2.0mm
Power of focal spot	21kW／42.5kW
Revolving speed of anode	2800rpm
Inherent filtration	1.5mmAl
Anode heat storage capacity	100kJ(140kHU)
Heat storage capacity	900kJ
Anode angle	16°
Maximum anode heat dissipation	475W
Type	Amorphous Silicon WIFI connection
Scintillator	Cesium Iodide
Active Area	14x17Inch(43cm*43cm)
Active Pixel	2304*2800
Pixel Pitch	≦150μm
A/D Conversion	16bits
DQE	≧70%
Spatial Resolution	36Lp/cm
Acquisition time	≤2S
AED function	Equipped
Type	Manual Collimator
Max. Window	440mm×440mm（SID=100cm）
Lamp	AC/DC24V、5W
Lamp timer	Automatic illumination with timer for lamp(30S)
Inherent filtration	1.0mmAl
Illuminant	LED
X-ray tube support way	Folding arm
Tube focus distance to the ground	490㎜～2015㎜，±5％
Arm’s Folding Range	-45~+45°
Tube Tilting Angle	±90°
Tube Vertical Rotation Angle	360°
Collimator axial rotation	±360°
Display size	19 inch LCD touch screen
Display screen Maximum resolution	1280*1024
CPU	≥2.0GHz
Memory	≥2GB
