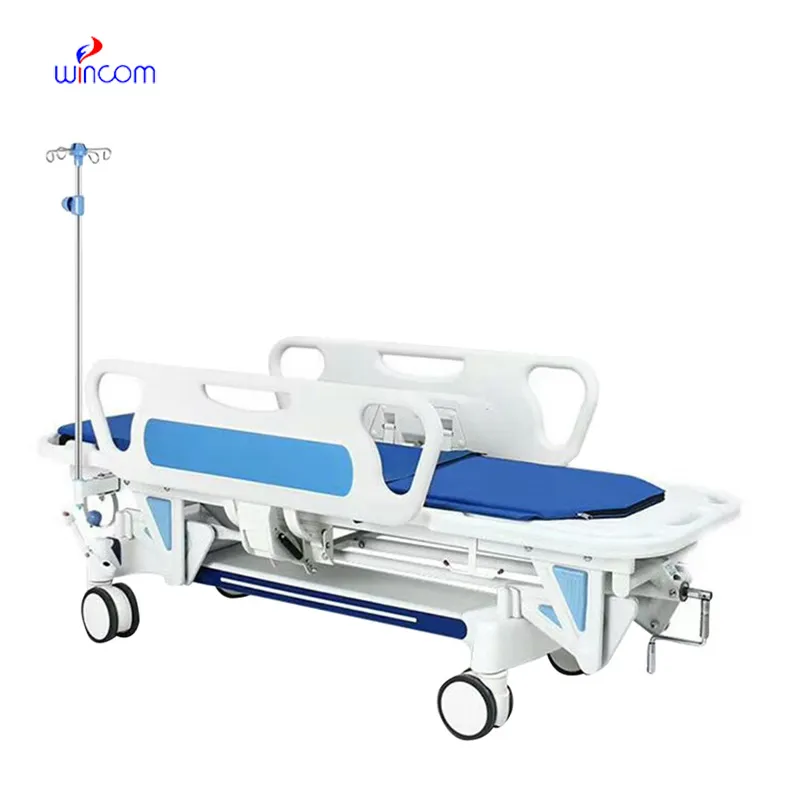

| PATIENT TORLLEY | |||
| Art.No. | WN-T01 | Length of the lying surface | 1930±10 /mm |
| Back adjustment angle | 0°~75°±5° | Width of the lying surface | 640±10/mm |
| Standard | Mattress,IV stand | Height adjustment range | 540~840/mm |
| Frame,lying surface,shake handle: 1900x610x550/860 mm | |||
| (1) The lying surface is are shaped by once injection molding of PP engineering plastics; it is light and strong, anti-aging | |||
| (2) There is IV pole both at the front and back position of the trolley, the IV stand has two telescopic and can be put under the lying surface when not in use. | |||
| (3) Below the head is equipped with back lifting switch, through control the pneumatic spring to adjust the back section, adjustment range: 0-80° | |||
| The shell frame is made of quality 30x60mm steel pipe, and the lifting support is made of high strengthsteel plate and the under carriage is mad of over 2 mm high qualified steel plate lift forming. | |||
| (4) Two side rails made of PP, control button under the side rails. | |||
