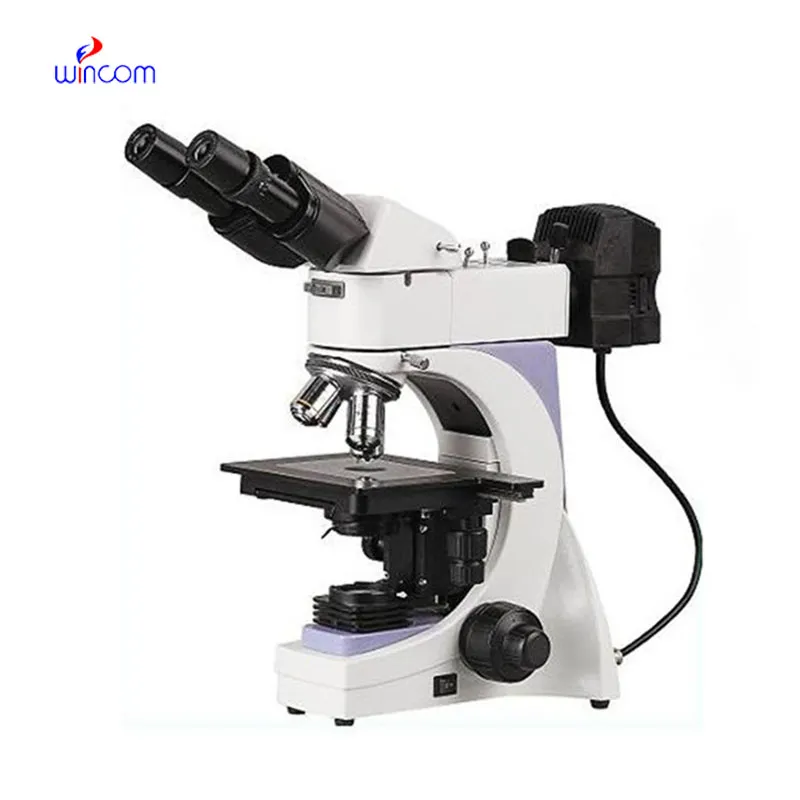

| METALLURGICAL MICROSCOPE | |
| Art. No. | MCS-M120A |
| Viewing head | Seidentopf type binocular head |
| Eyepiece | WF 10×/18 |
| Objective | 4×/0.1/∞/- WD25.4mm 10×/0.25/∞/- WD10.0mm 40×/0.60/∞/0 WD2.90mm |
| Nosepiece | Quadruple nosepiece |
| Stage | Double layer mechanical stage 150*140mm/75*50mm |
| Focusing | Coaxial fine & coarse adjustment |
| Illumination | Diaphragm, 6V/20W halogen lamp, brightness adjustable. |
| Filters | Blue,green, yellow & ground glass |
