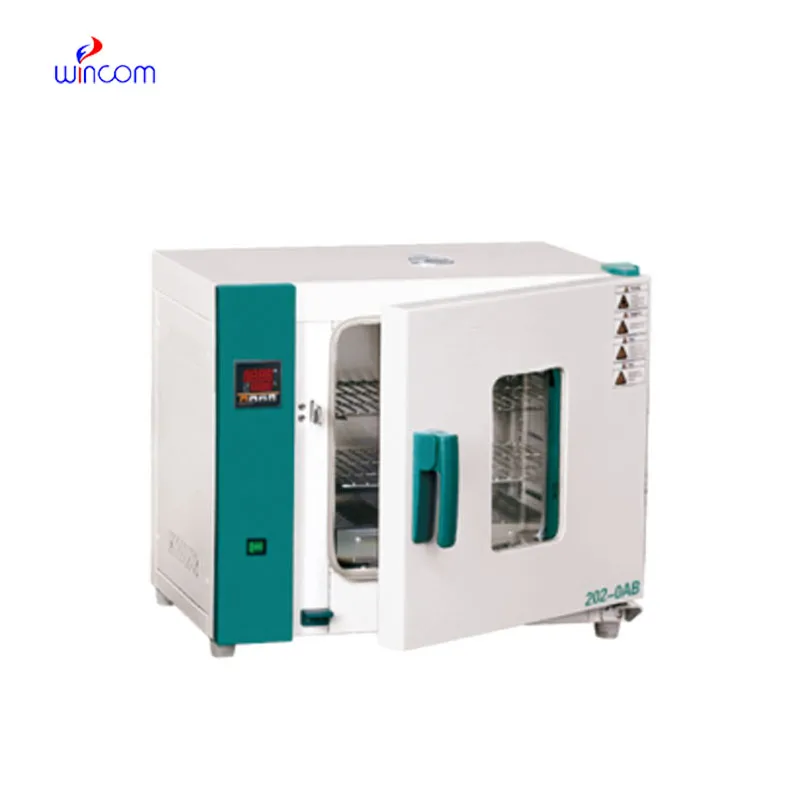

Horizontal Drying Oven 101-0A

Horizontal Drying Oven
Art. No.		101-0A/101-0AB	101-1A/101-1AB	101-2A/101-2AB			101-3A/101-3AB
		202-0A/202-0AB	202-1A/202-1AB	202-2A/202-2AB			202-3A/202-3AB
Cycle Mode		101 means Forced convection;202 means Natural convection
Function	Temp. Range	RT+10-250℃
	Temp. Resolution Ratio	0.1℃
	Temp. Motion	±1℃
	Temp. Uniformity	±2.5%
Structure	Inner Chamber	B model:High quality stainless steel;
		without B model:High strength galvanized sheet
	Outer Shell	Cold rolling steel electrostatic spraying exterior
	Insulation layer	Compound silicate heat preservation board
	Heater	101 model with Stainless steel electric heating tube;
		202 model with Nickel chromium alloy heating wire
	Power rating	1.2kW	1.6kW		2.3kW		3.0kW
	Exhaust hole	φ28mm top(with function of test hole)
Controller	Temp. control mode	Two temperature section PID intelligent
	Temp. setting mode	Touch button setting
	Temp. display mode	LED Digital display
	Timer	0-9999min(with timing wait function)
	Operation function	Fixed temperature operation, timing function,auto stop.
	Additional function	Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
	Sensor	pt100
Safety device		Over temperature sound-light alarm
Specification	Inner Chamber size(WLH)(mm)	350350350	450350450			550450550	600500750
	Exterior size (WLH)(mm)	652472587	752472687			852572786	902622986
	Volume	43L	71L			136L	225L
