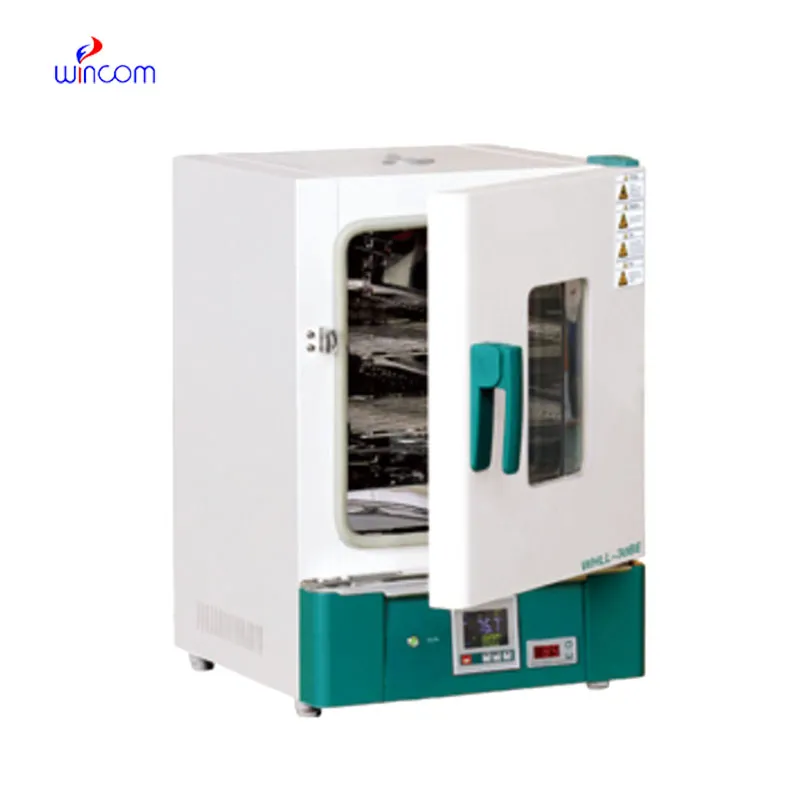

Constant Temperature Air Dry Oven WHL-30B

Description

Constant-temperature Air Drying Oven
Art.no.		WHL-30B	WHL-45B	WHL-65B	WHL-85B	WHL-125B
		WHLL-30BE	WHLL-45BE	WHLL-65BE	WHLL-85BE	WHLL-125BE
Cycle Mode		Natural convection
Function	Temp. Range	RT+10-300℃
	Temp. Resolution Ratio	0.1℃
	Temp. Motion	±1℃
	Temp. Uniformity	±3.5%
Structure	Inner Chamber	Mirror Stainless Steel
	Outer Shell	Cold rolling steel electrostatic spraying exterior
	Insulation layer	Compound silicate heat preservation board
	Heater	Stainless steel heater
	Power rating	0.8kW	1.2kW	1.6kW	2.0kW	2.5kW
	Exhaust hole	φ28mmtop(with function of test hole)
Controller	Temp. control mode	Two temperature section PID intelligent
	Temp. setting mode	Touch button setting
	Temp. display mode	B model: display on LED
		BE model: display on upper LCD
	Timer	0-9999min(with timing wait function)
	Operation function	Fixed temperature operation, timing function, auto stop.
	Additional function	B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
		BE model: Mechanical independent temperature limiter, sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
	Sensor	pt100
Specification	Inner Chamber size(WLH)(mm)	310310310	350350350	400360450	450420450	500450550
	Exterior size (WLH)(mm)	460510695	500550735	550550840	590610830	636680915
	Volume	30L	45L	65L	85L	125L
optional accessories		B model: Shelf; BE model: Shelf,RS485 interface, printer, program temperature control device, remote control, wireless SMS alarm, USB data storage
